FUEGO DS-X7 4K Day & Night Vision Scope

Unlock clear, dependable performance from bright daylight through to complete darkness with the FUEGO DS-X7 4K Day & Night Vision Scope.

Designed for airgun and rimfire shooters, the DS-X7 combines full-colour daytime viewing with infrared-assisted night vision. Its 5–20x magnification range, sharp 1280 × 720 IPS display and picture-in-picture mode provide a detailed sight picture while helping the shooter retain a wider view of the target area.

The integrated 850nm infrared illuminator offers three brightness levels and a claimed illumination distance of up to 300 metres. At night, users can select either a high-contrast black-and-white image or a traditional green night-vision display.

Video can be recorded at up to 4K/30fps, with 1080p/60fps and 1080p/30fps options also available. Recordings are stored on a Micro SD card, with cards up to 512GB supported. A 32GB card is supplied, allowing the scope to be used straight from the box.

Eight reticle designs and three reticle colours—red, green and yellow—allow the display to be adapted to different backgrounds and lighting conditions. Digital zeroing, adjustable display brightness and an onboard 3D gyroscope provide additional assistance when setting up and shooting in the field.

The rugged alloy housing is rated to withstand impacts of up to 1,200G and carries an IP56 weather-resistance rating. An integrated Picatinny mount provides a secure attachment, while the compact body weighs approximately 660g.

Power comes from a removable rechargeable 18650 battery, with convenient USB-C charging.

Key features

• Digital day and night vision

• Full-colour daytime mode

• Black-and-white and green night modes

• 5–20x total magnification

• 5x optical magnification with 1–4x digital zoom

• 42mm F1.6 objective lens

• 1280 × 720 IPS display

• Five display-brightness levels

• Records at up to 4K/30fps

• 1080p/60fps and 1080p/30fps recording options

• Picture-in-picture aiming mode

• Integrated 850nm infrared illuminator

• Three IR brightness settings

• Claimed IR illumination distance of up to 300m

• Eight reticle designs

• Red, green and yellow reticle colours

• Digital zeroing calibration

• 3D gyroscope with pitch-angle display

• Micro SD card support up to 512GB

• Loop-recording options

• Integrated Picatinny mount

• IP56 weather-resistant construction

• Rated to withstand impacts up to 1,200G

• Rechargeable 18650 battery

• USB-C charging

Technical specifications

• Magnification: 5–20x

• Objective lens: 42mm

• Aperture: F1.6

• Focus: Manual

• Focusing distance: 2m to infinity

• Eye relief: Up to 50mm

• Diopter adjustment: Approximately +4 to -4D

• Field of view: 6.2° × 3.4°

• Display: 1280 × 720 IPS

• Video: 4K/30fps, 1080p/60fps or 1080p/30fps

• IR wavelength: 850nm

• Memory: Micro SD/TF card up to 512GB

• Power: One rechargeable 3.7V 18650 battery

• Connection: USB-C

• Operating temperature: -20°C to +50°C

• Dimensions: Approximately 198 × 69 × 55mm

• Weight: Approximately 660g

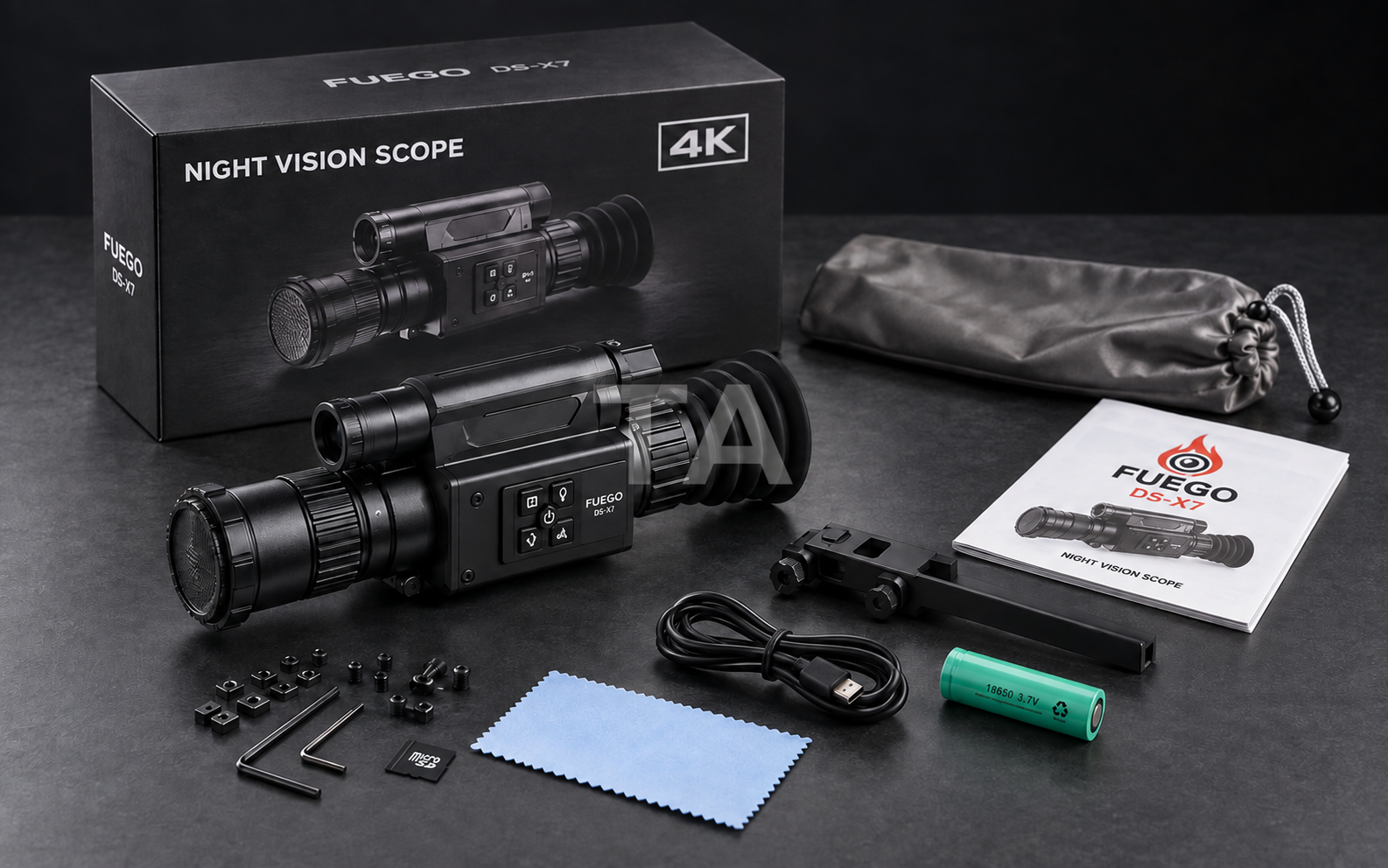

Supplied with

• FUEGO DS-X7 scope

• Rechargeable 18650 battery

• 32GB Micro SD card

• USB-C charging cable

• Carry pouch

• User instructions
